EV HYDROGEN® CH Oring 1500
Ball Check Ball C&T Oring 1500 bar

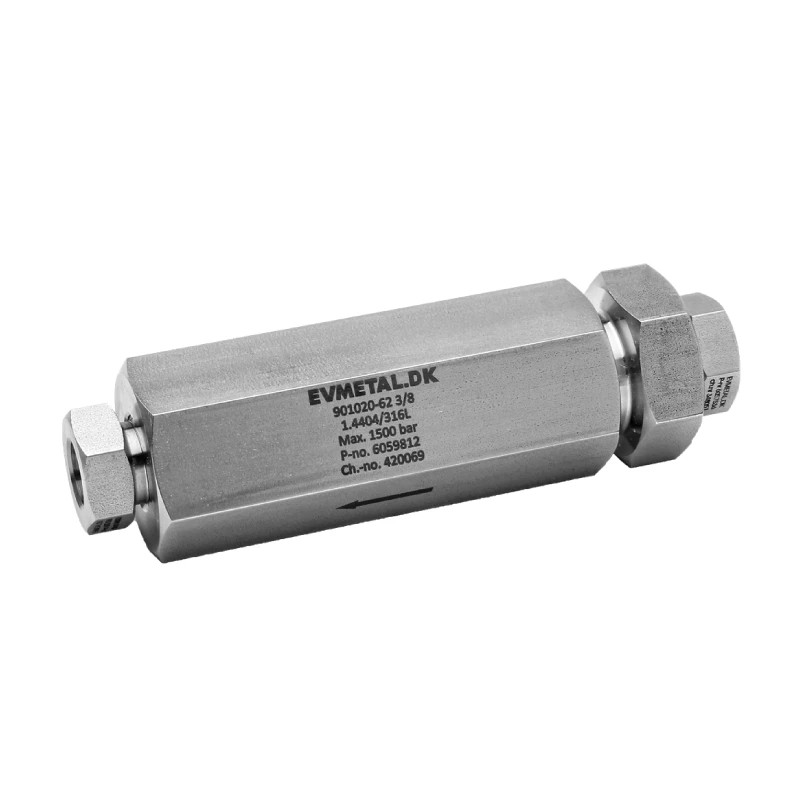

To prevent backflow and when a hermetic seal is not required, the Ball Check Valves by EV HYDROGEN® are essential. The ball check valves are designed with a floating ball and a suspended seat. This design allows full flow around the ball, minimizing pressure drop.
The EV HYDROGEN® ball check valves comply with the Pressure Equipment Directive (PED) 2014/68/EC.
Technical Features
Sizes
From ¼” to ¾”
Pressure
- 1500 bar (21.500 psi)
Materials
- Stainless Steel SS316L
Temperature Range
- -20°C +180°C
Connectors
- C&T
Certificates
- CE makring as per PED 2014/68/UE
